About
Designed for demanding landscapes, the Kress EyePilot® 4×4 RTKⁿ KR286 2.5 acre robotic mower combines RTKⁿ satellite positioning with vision-based awareness and a true four-wheel-drive system to deliver precise, navigation across complex terrain—without added hardware. A four-motor drivetrain with real-time torque control maintains traction and direction on slopes up to 84% (≈40°), while articulated body keeps all four wheels grounded and the cutting plane consistent across uneven ground. Front-wheel steering enables smooth turns without turf damage, while 2.4in vertical obstacle clearance allows the mower to handle raised edges and transitions with confidence. RTKⁿ correction is delivered over the air and supported by a redundant positioning architecture for reliable accuracy, even when satellite signals are degraded. Connectivity via Wi-Fi or integrated 4G ensures continuous operation, with no ongoing costs.
- Four-wheel drive traction for slopes up to 84% (≈40°)
- Articulated geometry for smooth all-terrain passability
- Front-wheel steering enables tight turns without turf damage
- Vertical obstacle clearance up to 2.4 in
- Vision-based lawn mapping for wire-free setup
- Obstacle-aware navigation with intelligent object avoidance
- Reliable navigation in shaded and complex terrain
- ZeroTrim cutting system for precise edge cutting
- RTK-guided operation
- Centimeter-level accuracy without added hardware
- Structured or random mowing paths
- Consistent cutting performance in thick and overgrown grass
- 24-hour mowing capacity of up to 2.5 acre per day
- Integrated 4G connectivity for reliable coverage
- Multi-zone management with precise routing between lawn areas
- Flexible lawn mapping options: automatic, assisted, or app-based mapping
- Quiet operation at just 62 dB
- Self-leveling cutting system
- Digitally adjustable cutting height
DOCUMENTS & MANUALS
Owner's manual| Fleet management | 1 |
|---|---|
| Battery capacity | 10 Ah |
| Charging current | 7 A |
| Battery voltage | 20 V |
| Cutting height adjustment | Electric |
| Cutting blades | 4 |
| Self-leveling blade disc | 1 |
| Cutting methods | Logic |
| Cutting width | 9.5 in |
| Cutting height | 1.57-3.54 in |
| USB | 1 |
| Wi-Fi/Bluetooth | 1 |
| 4G | 1 |
| PIN code | 1 |
| Lift sensor | 1 |
| Auto lock | 1 |
| App | 1 |
| Display | Tube |
| Weight | 44.53 lbs |
| Maximum slope | 84% |
| Sound level perceived | 62 db |
| Front wheels | 2 |
| Weather resistant | 1 |
| Hose cleaning | 1 |
| Quick return | 1 |
| Water protection index (IP code) | IPX6 |
- Screw for fixing blades — Qty: 16
- Charger with 10m extension cable — Qty: 1
- Charging base fixing nails — Qty: 8
- Hex keys — Qty: 1
- Measurement gauge — Qty: 2
- Spare blades — Qty: 16
- Battery — Qty: 1
- Charger — Qty: 1
- Charging tower — Qty: 1
- Charging base — Qty: 1
- EyePilot robotic lawn mower — Qty: 1
What is the Kress KR286 EyePilot robotic mower?
The KR286 is a 4×4 RTKⁿ robotic mower with EyePilot® vision navigation, sized for about 2.5 acres per day. It combines satellite positioning with camera-based awareness — no boundary wire or added hardware to install.
What terrain can the KR286's four-wheel drive handle?
True 4WD with real-time torque control and an articulated body climbs slopes up to 84% (≈40°) and clears vertical obstacles up to 2.4 in while keeping all four wheels grounded.
What is ZeroTrim?
ZeroTrim is a cutting system designed for precise edge cutting, so the KR286 trims cleanly along lawn edges and reduces manual touch-up.
How does the KR286 connect and stay secure?
Wi-Fi or integrated 4G keeps it connected with no ongoing costs, and it includes PIN code, lift sensor, auto-lock, anti-theft, and an IPX6 weatherproof build.

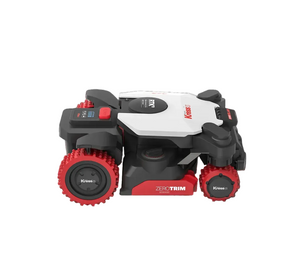

KR286 Kress EyePilot® 4×4 RTKⁿ 2.5 acre robotic lawn mower with Zero Trim and integrated 4G and Premium Security
- Regular price
- $4,299.99
- Sale price
- $4,299.99
- Regular price
-
Designed for demanding landscapes, the Kress EyePilot® 4×4 RTKⁿ KR286 2.5 acre robotic mower combines RTKⁿ satellite positioning with vision-based awareness and a true four-wheel-drive system to deliver precise, navigation across complex terrain—without added hardware. A four-motor drivetrain with real-time torque…
